DESCRIPTION

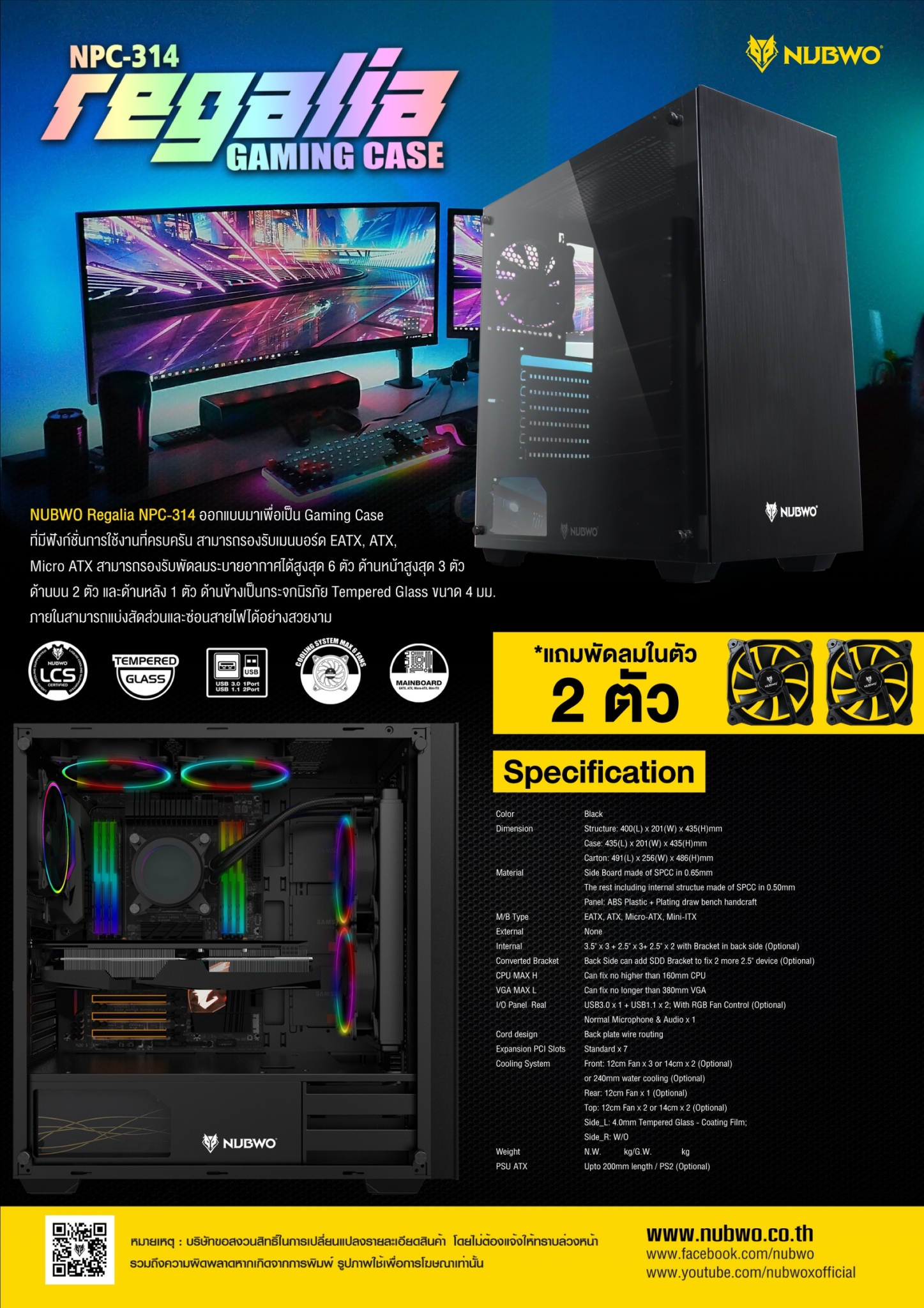

SPECIFICATIONS

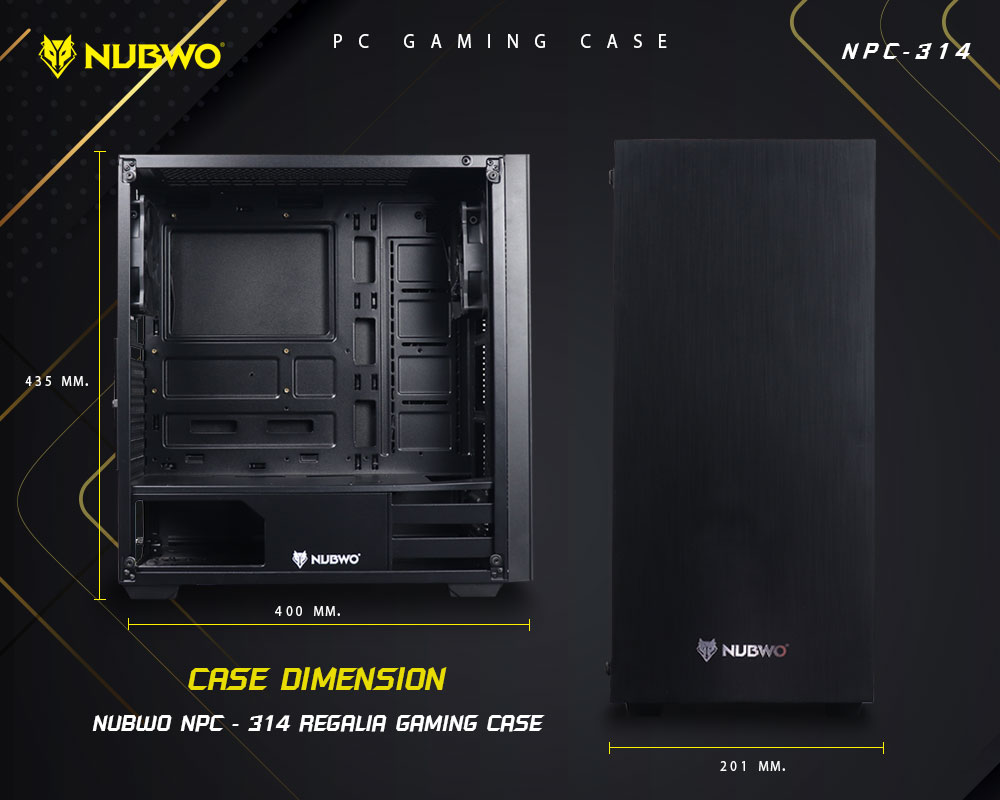

- Structure : 400(L) x 201(W) x 435(H)mm
- Case : 435(L)x201(W)x435(H)mm
- Carton : 491(L)x256(W)x486(H)mm
- Material : Side Board made of SPCC in 0.65mm, The rest including internal structure made of SPCC in 0.50mm
- Panel : ABS Plastic + Plating draw bench handcraft

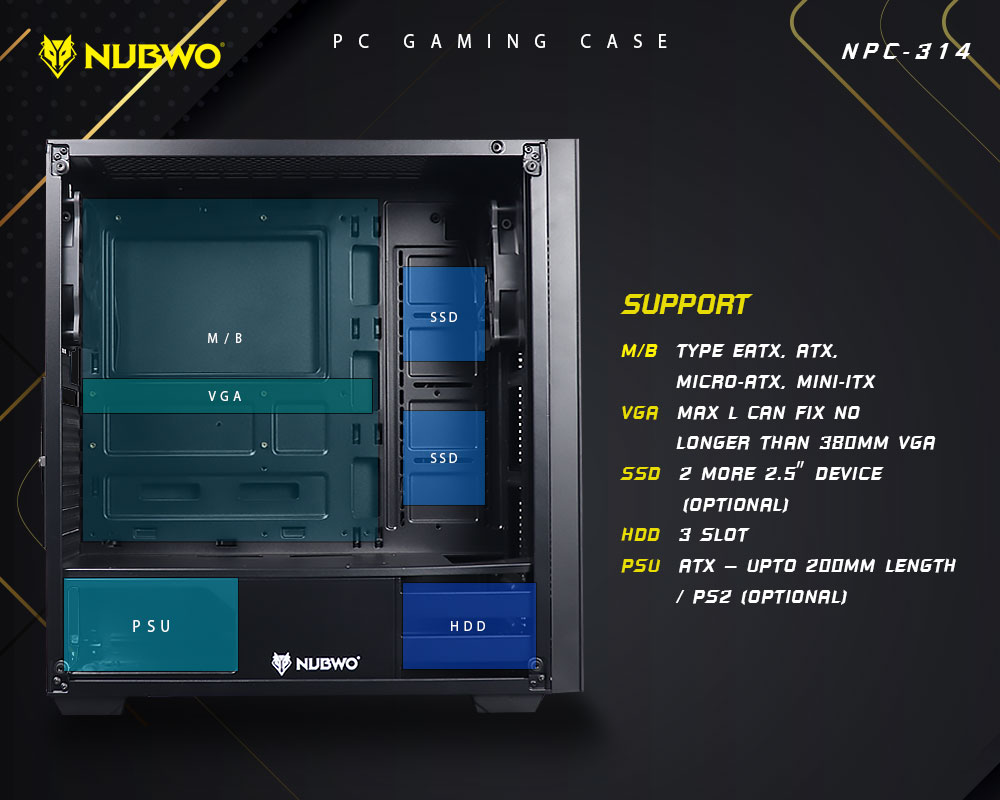

- M/B Type : EATX, ATX, Micro-ATX, Mini-ITX
- External : None
- Internal : 3.5″ x3 + 2.5″ x3+ 2.5″ x2 with Bracket in back side(Optional)
- Converted Bracket : Back Side can add SDD Bracket to fix 2 more 2.5″ device (Optional)
- CPU MAX H : Can fix no higher than 160mm CPU
- VGA MAX L : Can fix no longer than 380mm VGA

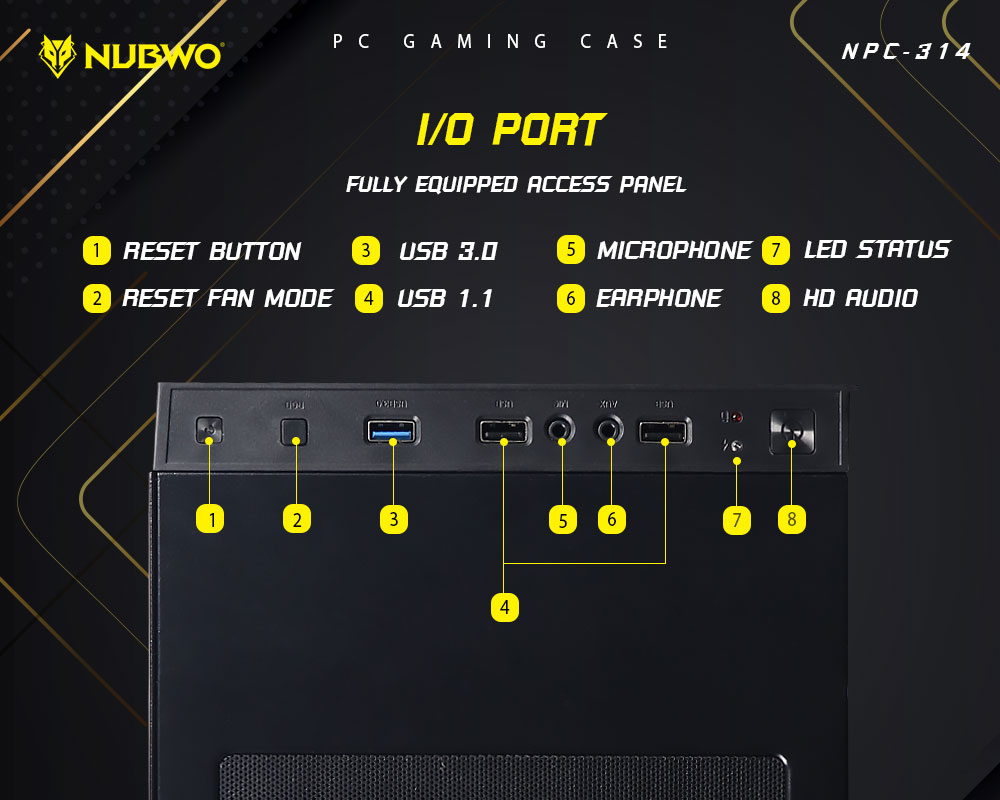

- I/O Panel : Real USB 3.0 x 1 + USB 1.1 x 2; With RGB Fan Control (Optional)Normal Microphone & Audio x 1
- Cord design : Back plate wire routing
- Expansion PCI Slots : Standard x 7
- Cooling System : Front: 12cm Fan x3 or 14cm x2(Optional) or 240mm water cooling (Optional)
- Rear : 12cm Fan x1 (Optional)
- Top : 12cm Fan x2 or 14cm x2 (Optional)
- Side L : 4.0mm Tempered Glass – Coating Film
- Side R : W/O
- PSU : ATX – Up to 200mm length / PS2 (Optional)
- Packing : K=K Brown Box (Foam Protect)
