November 2018

SPECIFICATIONS

• Watts : 550w
• IDE Port : 3 Ports
• SATA Port : 6 Ports
• Complies With ATX 24 Pin : 1 Port
• Complies With ATX 12V : 1 Port
• Braided Cable : 500mm + 150mm
• ATX Version : ATX 12V ver 2.31
• Input Voltage : 230V
• Input Current : 4P
• Protection Inrush Current : Support
• Protection Over Current : Support
• Protection Over Temperature : Support
• Input Frequency : 50Hz
• Fan Size : 12cm

FUNCTION FEATURES

PC COOLING TORNADO รหัส NFT-312

• Measurement : 120*120*25mm
• Rated Voltage : 12 DCV
• Operating Voltage : 10.8 ~ 13.2 DCV
• Starting Voltage : Max:10.5 DCV (on/off)
• Rated Current : 1.19 ± 0.03 Amp
• Max. Current : Max 0.25 Amp (label’s current valye)
• Rated Speed : 1200 ± 10%RPM (after running3~5minutes)
• Noise Level : 20.9 dB(A)
• Air Flow : 25.5 CFM
• Life Expectancy : 20000 Hours (at 25ºC 65%R.H.)
• Operating Temperature : -10~+70ºC (65%RH)
• Storage Temperature : -40~+70ºC (65%RH)
• Warranty:1 Year หรือตามเงื่อนไขของบริษัท

WINDSTORM GAMING CASE รหัส NPC-312

Dimension
Structure : 400(L)* 201(W)* 435(H)mm
Case : 435(L)x201(W)x435(H)mm
Carton : 491(L)x256(W)x486(H)mm
Material
Side Board : SPCC in 0.65mm
Internal structue : 0.50mm
Front Panel: ABS Plastic + 4.0 mm Tempered Glass
M/B Type EATN, ATX, Micro-ATX, Mini-ITX
Internal : 3.5″*3 + 2.5″*3+ 2.5″*2 with Bracket in back side (Optional)
Converted Rack : Back Side can add SDD Rack to fix 2 more 2.5″ device (Optional)
CPU MAX H : Max 160mm CPU
VGA MAX L : Max 380mm VGA
I/O Panel
USB3.0 x 1 + USB1.1 x 2
With LED Fan Control button
Normal Microphone & Audio x 1
Type – C (Optional)
Cord design : Back plate wire routing
Expansion Slots : Standard x 7
Cooling System
Front : 12cm Fan*3 or 14cm*2 (Optional) or 240mm water cooling (Optional)
Rear : 12cm Fan * 1 (Optional)
Top : 12cm Fan*2 or 14cm*2 (Optional)
Weight : N.W. : 6.2 kg, G.W. : 7.2 kg
PSU : ATX – Up to 200mm length / PS2 (Optional)
Color : Black
Warranty : 1 Year หรือตามเงื่อนไขของบริษัท

NUBWO ROWELZ GAMING CASE รหัส NPC313

• Model Name : Rowel-Z
• Color : Black
• Steel Thickness : Chassis:0.5mm SPCC
• Mother Boards : ATX/MICRO ATX
• Case Dimensions : 403x203x455mm
• 3.5″ Drive Bays : 3.5 “internal for HDD” 2PCS
• 2.5″ Drive Bays : 2.5 “internal for SSD” 4PCS
• Expansion Slots : 7 Slots
• GPU Clearance : Video card : 350mm lenght (max)
• CPU Clearance : CPU radiator : 162mm height (max)
• Cooling System : Front : T360/240mm water-cooling / Rear : T120mm water-cooling
• Radiator Support : Front : 120mm x 3 , 140mm x 2 / Rear : 120m x 1 / Top : 120mm x 2, 140mm x 2
• I/O Ports : USB 3.0 x1 / USB 2.0 x2 / HD Audio / MIC x1 / SPK x1
• Power Supply : Bottom/ATX PS2 PSU

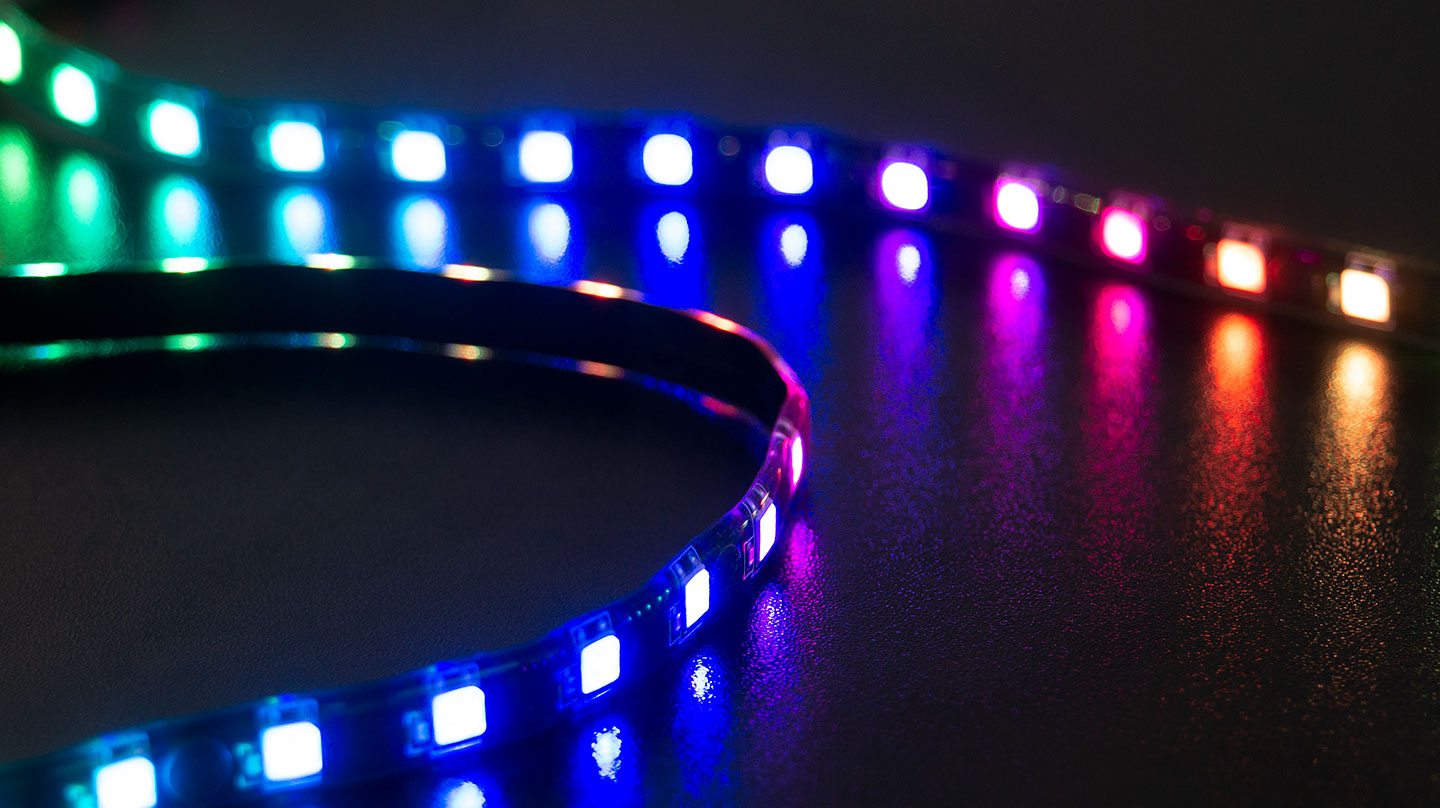

High brightness Motherboard Controlled RGB LED Strip. The latest RGB variable lighting system provides a vastly enhanced visual experience. RGB lighting that brightly lights up your entire rig and fulfilling your aesthetic desires.

PACKAGE INCLUDES

• 4 x RGB PC Fans
• 2 x RGB Strip Light
• 1 x 21 keys RF Remote Controller
• 1 x hub box

SPECIFICATIONS

• Rating voltage : DC12V
• Rated Current : Max 450mA
• Rated voltage : DC 5.0-13.8V
• Stat-UP Voltage : DC5V(ON/OFF)
• Bearing Type : Hydraulic
• Fan Speed RPM : 1300 RPM±10%
• Advance Ari flow : 34.34CFM
• Advance Ari Pressure : 1.51mm- H20
• Max noise level : 25db(A)
• Connector : 6pin
• Dimention :120(W) x 120(H) x 25(D)mm
• Cable Length : 420mm
• Fan Weight : 135g
• Warranty:1 Year หรือตามเงื่อนไขของบริษัท

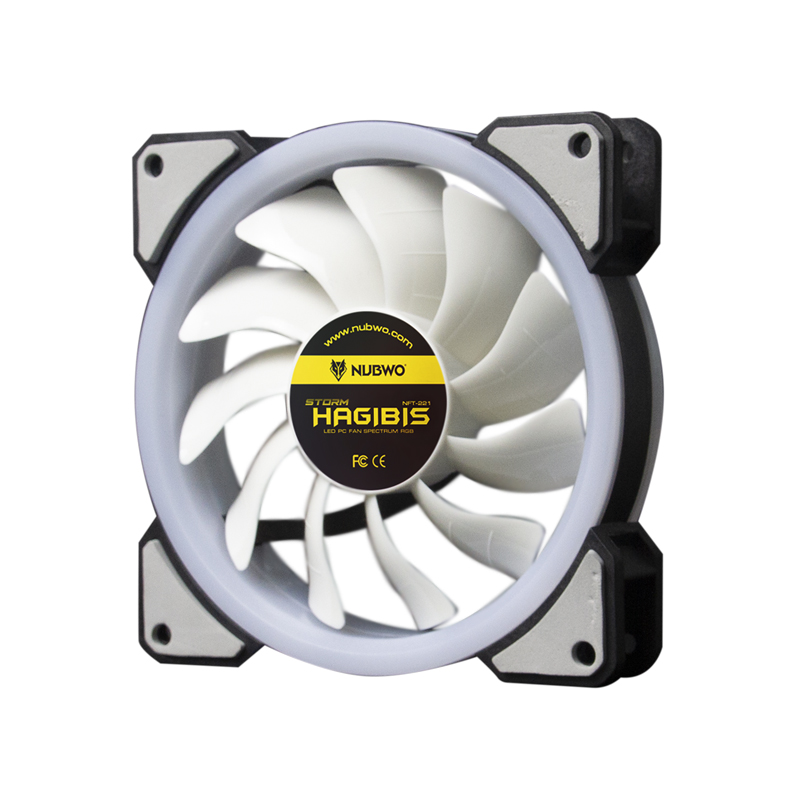

SPECIFICATIONS

• Voltage : DC12V
• Current : 4.27A
• Bearing Type : Hydraulic
• Fan Speed RPM : 1300 RPM±10%
• Max Ari flow : 51.3CFM
• Max Ari Pressure : 2.32mm/H20
• Noise level : 13.8db(A)

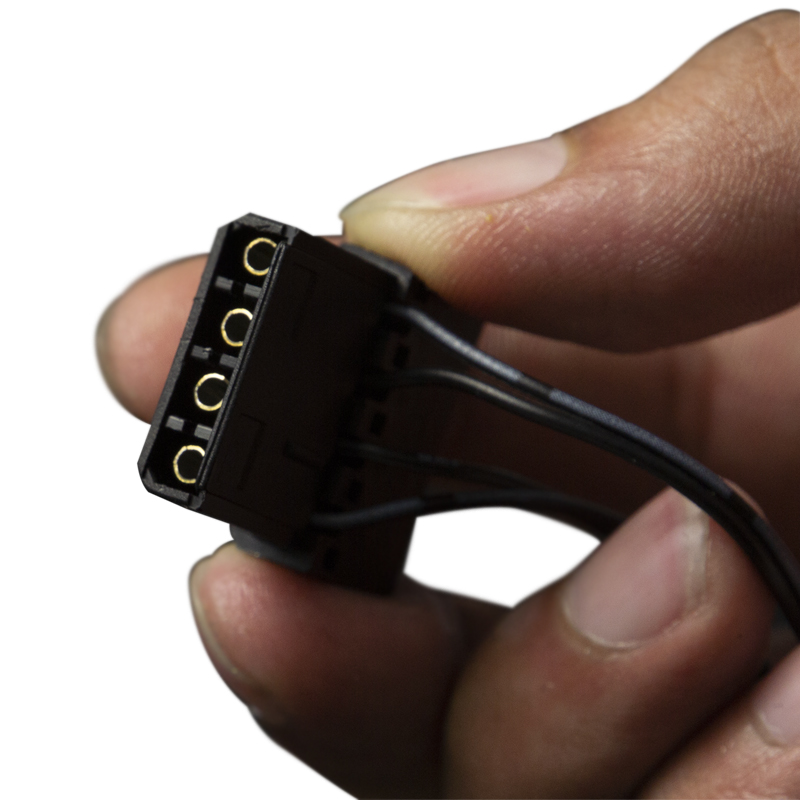

• Connector : 2510-4p
• Dimention :120(W) x 120(H) x 25(D)mm
• LED Lighting: 12pcs.
• Packaging Size : 3.5*13*13 cm
• Packaging Weight : 166 g
